The new Flyleds WigWag Switch is another simple way to add WigWag flash patterns to existing lights. This three-position (progressive) switch functions similarly to Flyleds versatile and popular WigWag Module, and can be set to operate your landing lights in one of two modes:
OFF - ON - WIGWAG
OFF - WIGWAG - ON.
Switching between modes is as simple as pressing a button.
Just like the WigWag Module, it can be set for one of eight different flash patterns at the press of a button, and it is rated for two 10 amp loads.

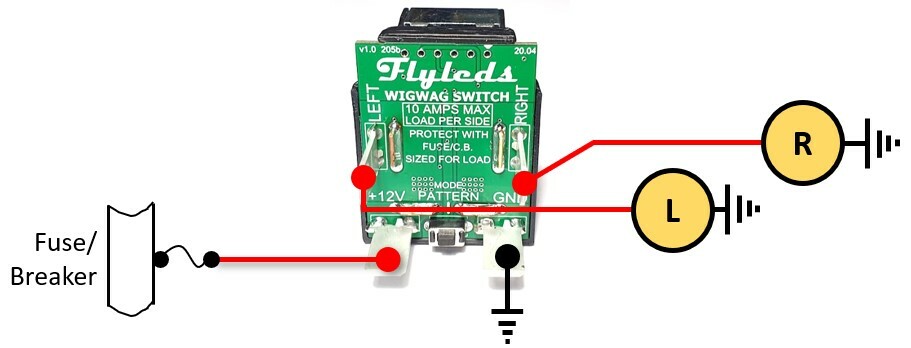

It's simple to install, just needing 12v power in, two connections out to your landing lights, and a low current ground connection for the module.
If your toggle switches are spaced an inch or more apart on your panel you shouldn't have any clearance issues.
