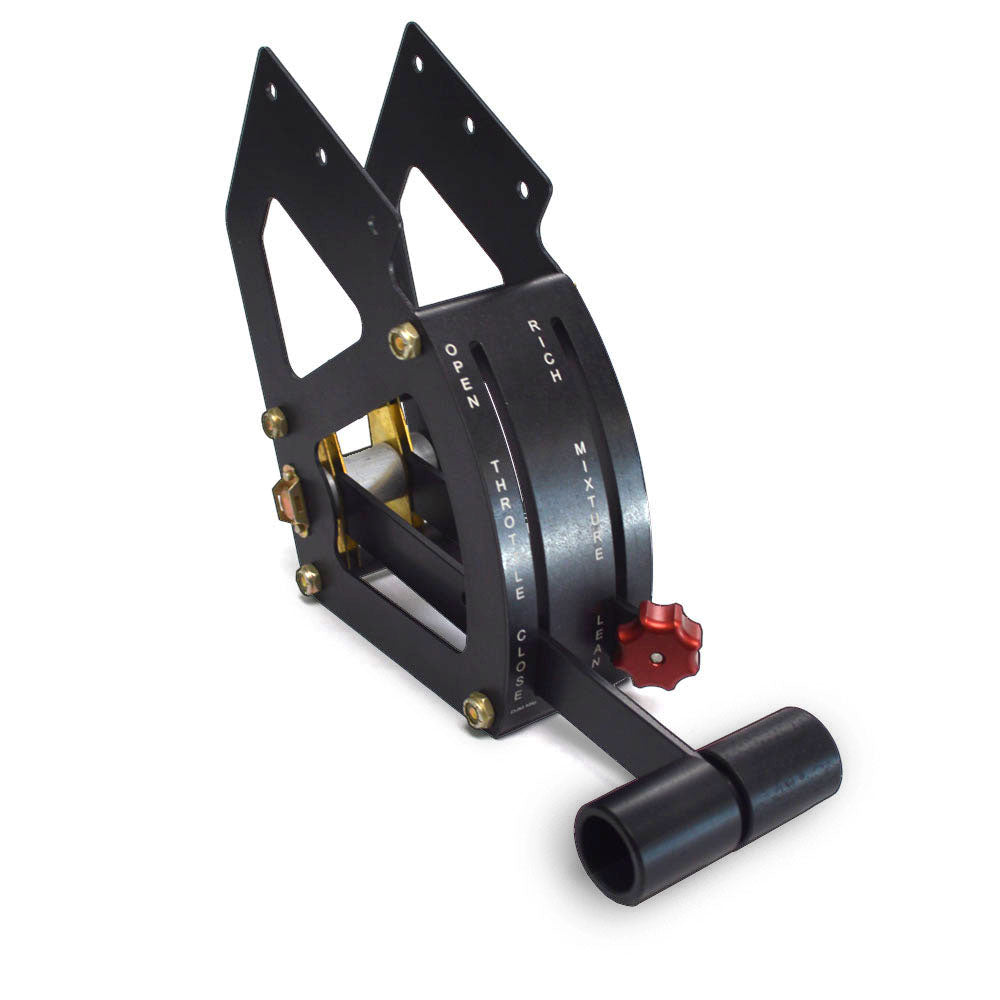

Center Mount Curve Top 2 Lever Quadrant: Throttle-Mixture
Center Mount Curve Top 2 Lever Quadrant: Throttle-Mixture
Regular price
$325.00 USD
Regular price
Sale price
$325.00 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
DJM's quadrants are made from aircraft quality anodized aluminum for long life and corrosion resistance.
Brass friction plates are adjustable to fit individual preferences. Black anodized top plates are machined and engraved on a CNC mill to exact tolerances for an excellent finish. Side plates are laser cut ensuring a perfect fit and feel. All hardware used meets AN standards.
Note: All throttle quadrants require an AN665-21R clevis with an AN393-11 clevis pin.
Quad dimensions
- Top plate length (front to back): 4.75”
- Top plate width (less hardware): 2"
- Top plate to bottom of pivot: 4.65”
- Attach bracket length (front to back): 3"
- Cable travel length: 2.25"
Share
M
Michael B. The business did ship the quadrant timely. It is as described. Unfortunately it will not work in my application. It is however very well built and a very nice quadrant.
